DF-type
Mr Lei 15817842088? ? Mr Cao 15899819318
Mr Chen 13790083198? ? Mr lü 13420665088
Ms Yao 15019622678? ? Ms Li 13600326220
1. F series with heavy load characteristics, can withstand greater radial or axial forces, suitable for large load rotary disk driving occasions.
2. the output shaft is flange flange design, the rotary table and the processing plate can be directly on the flange. The fixed surface is wide and grinded to ensure the flatness of the fixed disk.
3. this series is widely used in the automatic drive disk, a variety of disk processing machinery and other similar industrial machinery.
4. If the output shaft is hollow, it is dfh type
5. hollow flange (dfh series) design, can use the shaft hollow hole rotation oil pressure, electrical pipeline, to beautiful machine and save space. Automatic peripheral systems or feeding equipment can also be installed by using the shaft's empty holes.

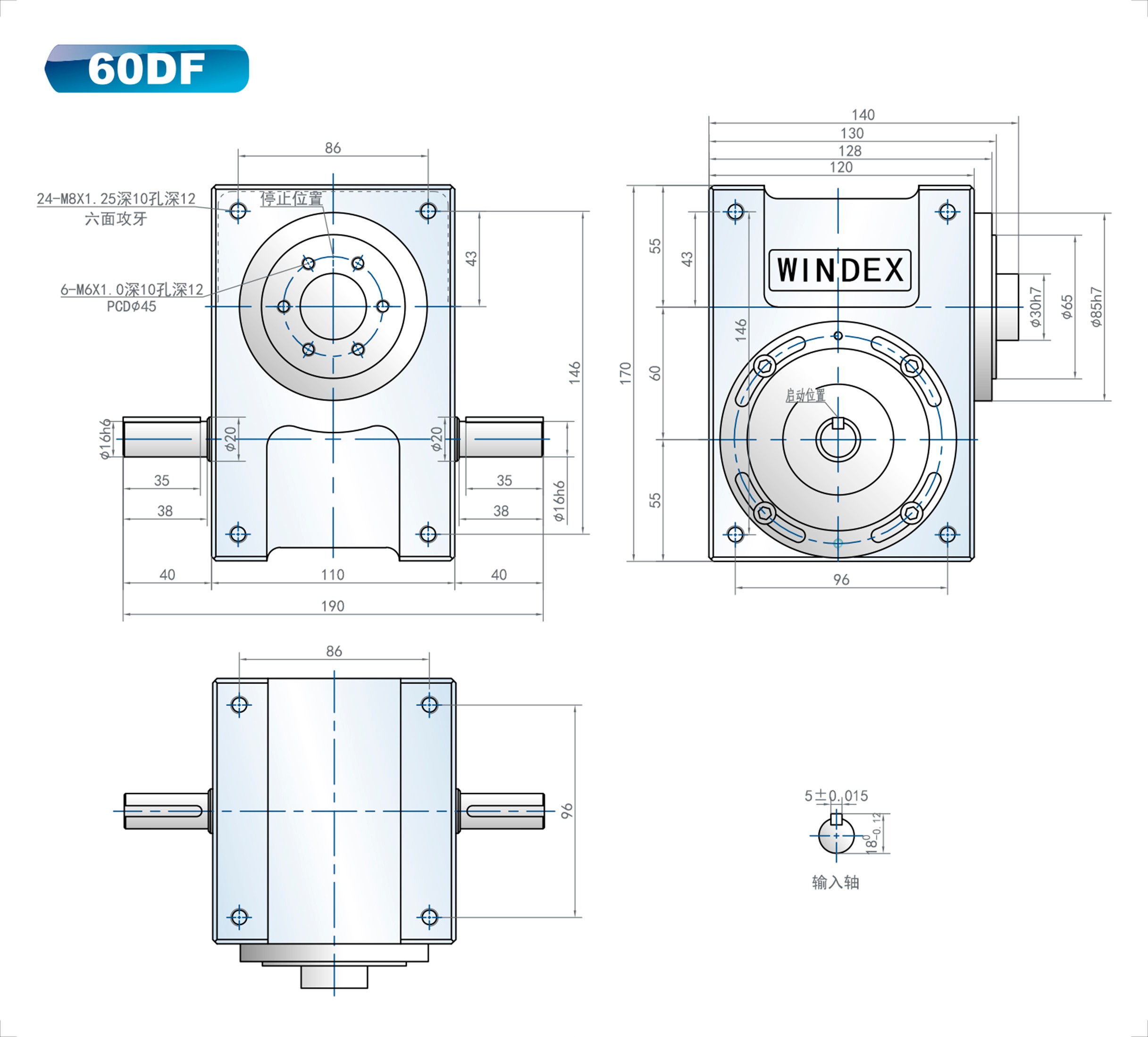

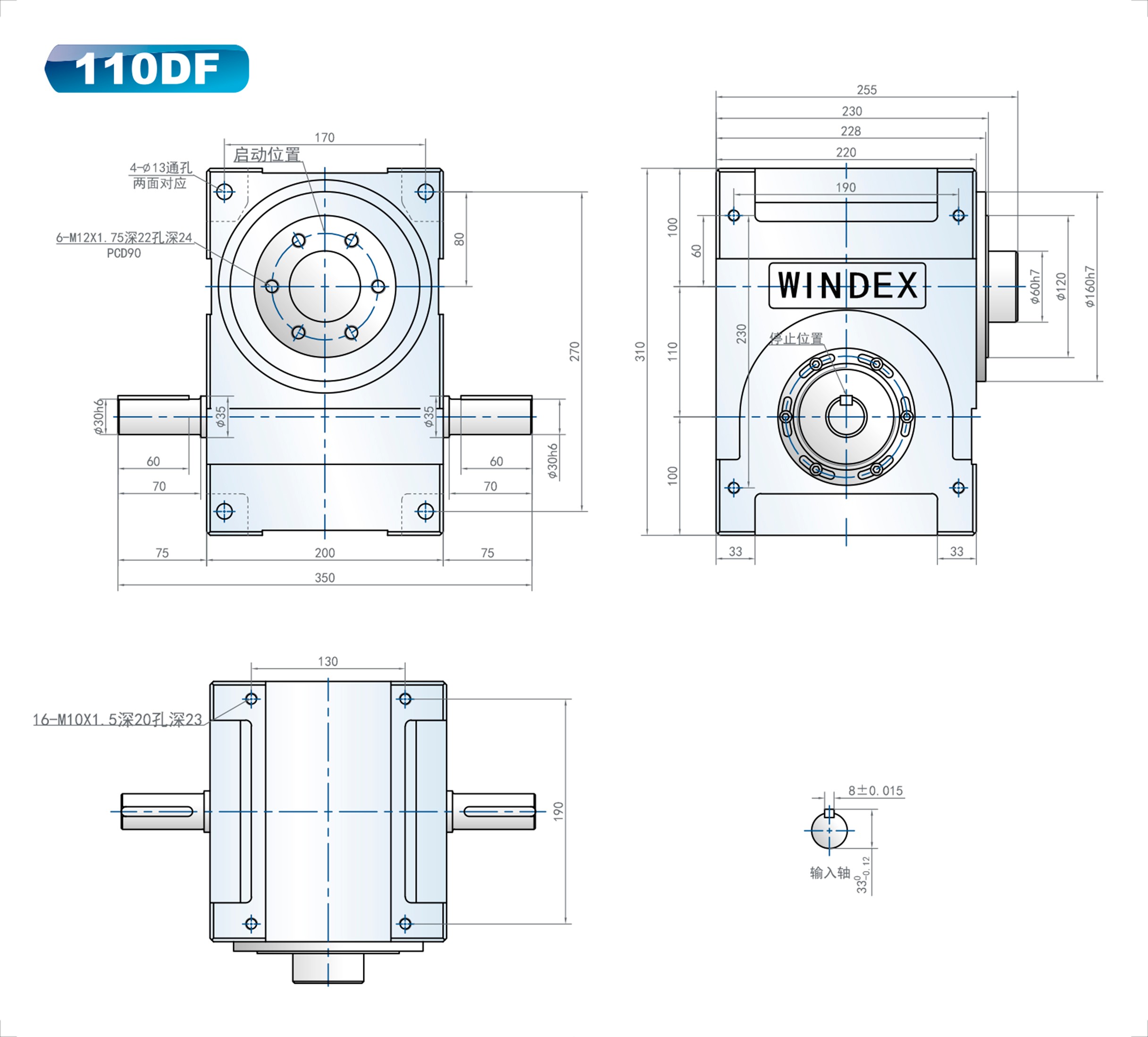

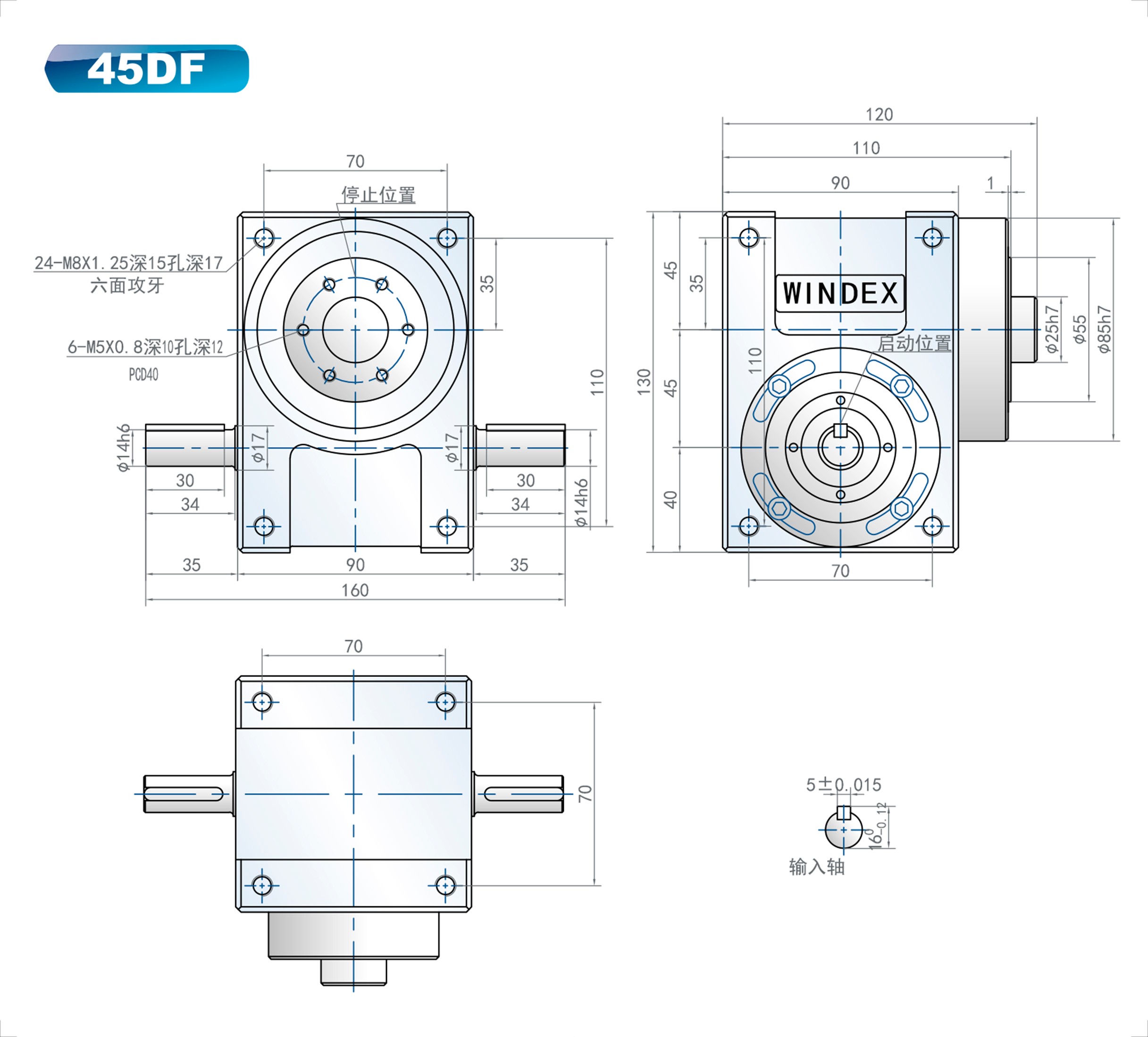

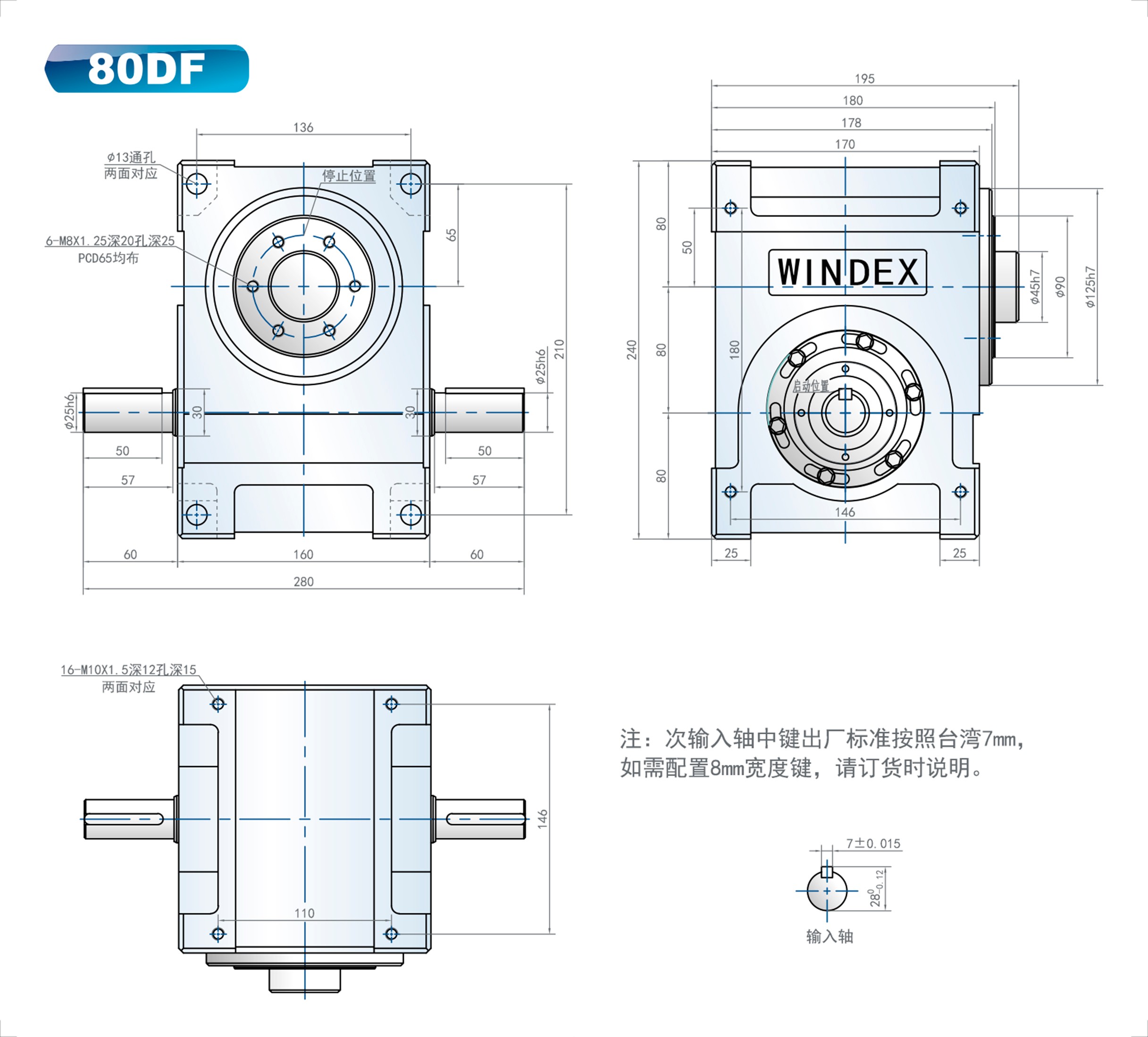

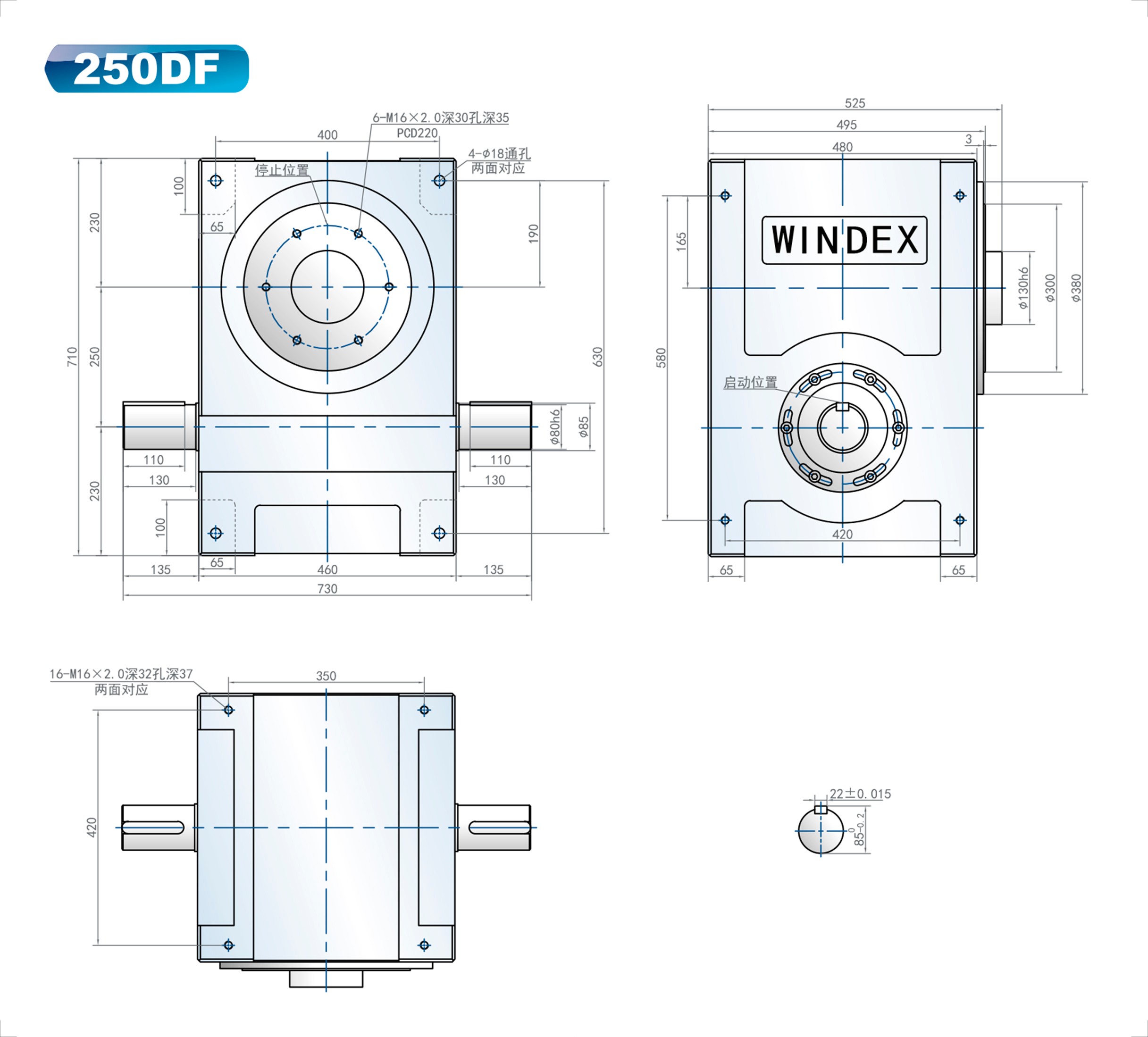

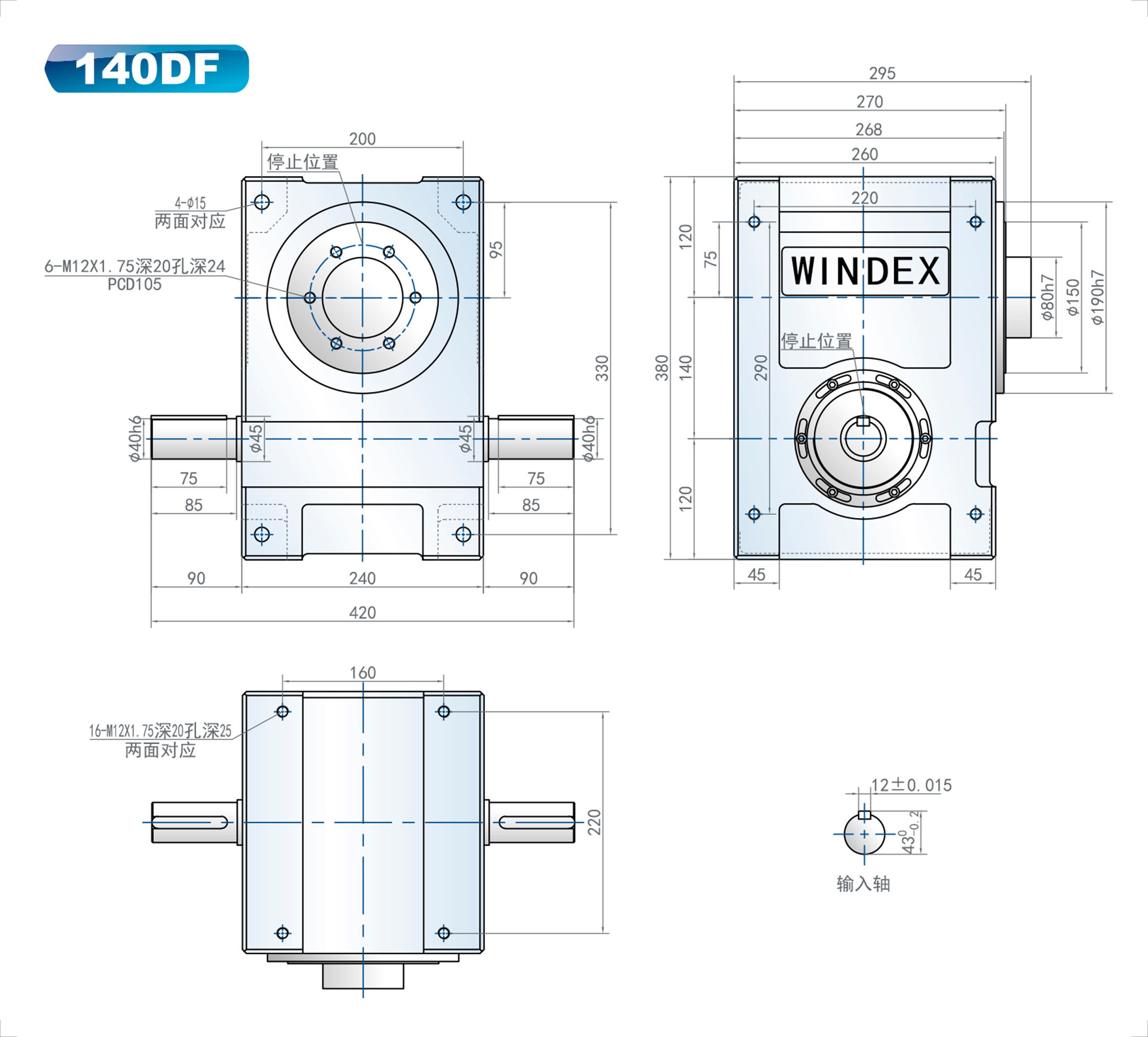

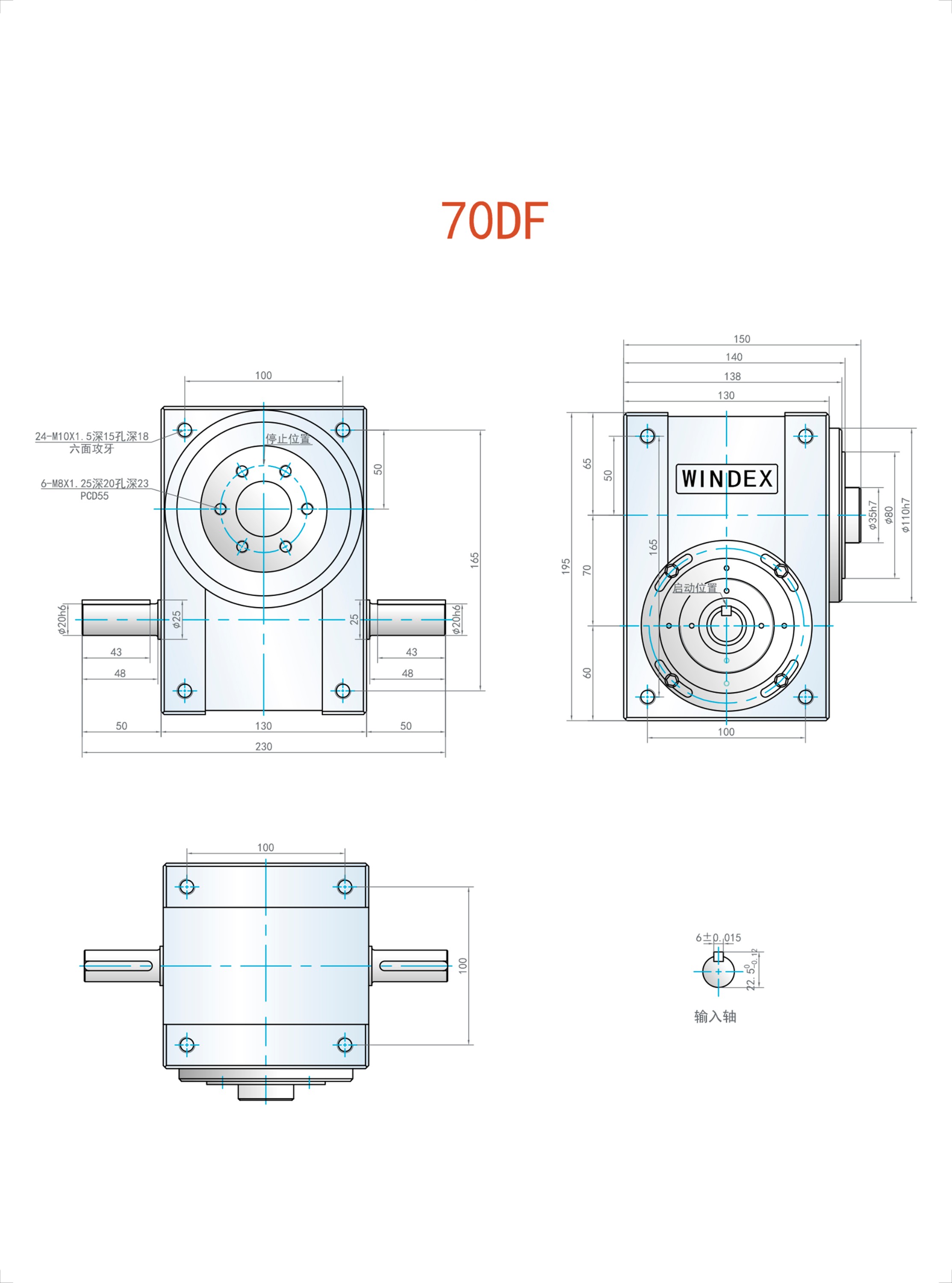

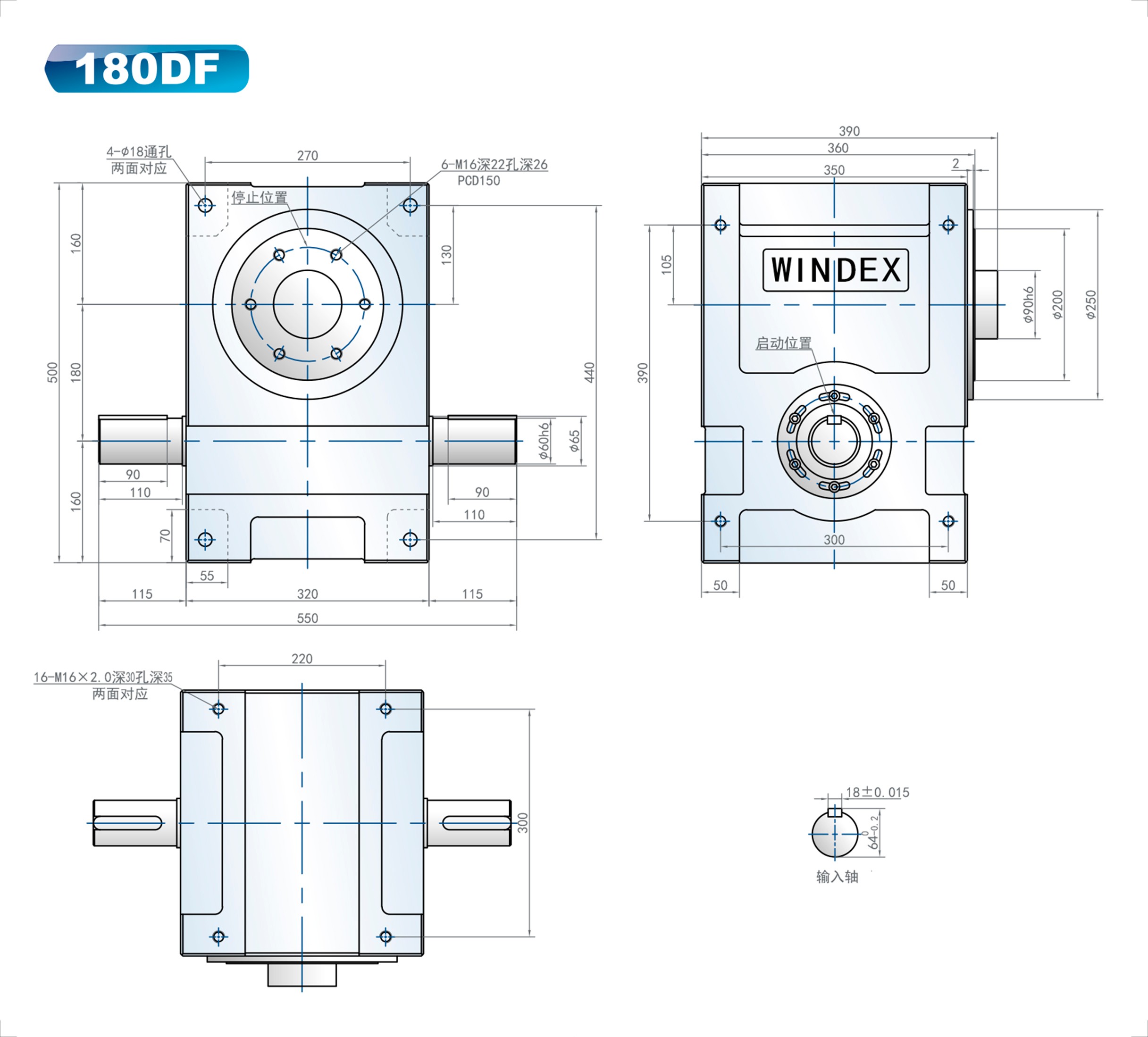

PROJECT | SYMBOL | UNIT | VALUE |
Allowable radial load of output shaft | C1 | kgf | 130 |
Output shaft allowable axial load | C2 | kgf | 140 |
Allowable torque of output shaft | Ts | kgf-m | Reference torque table |
Input shaft allowable radial load | C3 | kgf | 85 |
Input shaft bending moment | C4 | kgf | 110 |
Input shaft maximum torque | C5 | kgf-m | 4 |
GD2 of input shaft (Note 1) | C6 | kgf-m2 | 3.2 x 10-4 |
Repeat positioning accuracy | sec. | ±60 | |
Weight | kg | 7 |
